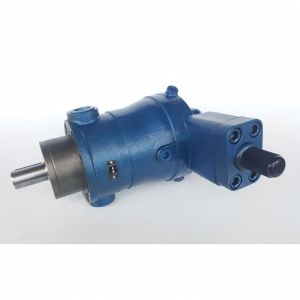

Industrial Machinery Piston Pump with Cast Iron Body for Industrial
Hydraulic Sys
Features:
1. The CY14-1B axial piston pump adopts a high-precision valve
plate and cylinder block design to ensure stable flow output under
high-pressure conditions, minimizing internal leakage.
2. The pump housing of this industrial piston pump is made of
high-strength alloy steel with carburizing and quenching treatment,
enhancing wear resistance and fatigue strength for long-term
continuous operation.
3. The CY14-1B axial piston pump delivers high volumetric
efficiency at rated pressure, reducing energy loss and improving
overall hydraulic system performance.
4. Featuring an optimized swash plate structure, this piston pump
ensures pistons receive uniform force, reducing mechanical
vibration and noise during operation.
5. The pump shaft of the CY14-1B axial piston pump is made from
premium alloy steel with high-frequency quenching, ensuring
strength and durability under high torque transmission.
6. Seals in this hydraulic piston pump are made of high-temperature
and oil-resistant fluororubber, ensuring excellent sealing
performance under high temperature and high pressure.
7. The CY14-1B axial piston pump uses a hydrostatically balanced
valve plate design to reduce friction and extend rotor assembly
service life.
8. Its compact design makes this piston pump suitable for
installation in space-limited hydraulic systems while maintaining
high power density.
9. The CY14-1B axial piston pump is suitable for mining machinery,
metallurgical equipment, and construction machinery, meeting harsh
working condition demands.
10. The valve plate set of this piston pump undergoes precision
grinding to ensure smoothness, improving volumetric efficiency and
pressure capacity.
Technical data:
| Parameters of *CY(CM)14-1B axial piston pump (motor) |
| Model NO. | Rated Pressure
(MPa) | Nominal Displacement
(ml/r) | Rated Flow
(L/min) | Power-output
(KW) | Max theoretical torque
(Nm) | Weight
(kg) |
| 1000r/min | 1500r/min | 1000r/min | 1500r/min |
| 1.25*CY(M)14-1B | 31.5 | 1.25 | 1.25 | 1.88 | 0.7 | 1.1 | 6.3 | 6.9 |
| 2.5*CY(M)14-1B | 31.5 | 2.5 | 2.5 | 3.75 | 1.43 | 2.2 | 12.6 | 7.2 |
| 10*CY(M)14-1B | 31.5 | 10 | 10 | 15 | 6.2 | 9.3 | 56 | 16.4~26 |
| 13*CY(M)14-1B | 31.5 | 13 | 13 | 19.5 | 8 | 12 | 72 | 16.4~26 |
| 16*CY(M)14-1B | 31.5 | 16 | 16 | 24 | 9.9 | 14.8 | 89 | 16.4~26 |
| 25*CY(M)14-1B | 31.5 | 25 | 25 | 37.5 | 14.6 | 22 | 139 | 28.4~41 |
| 32*CY(M)14-1B | 31.5 | 32 | 32 | 48 | 18.7 | 28 | 178 | 28.4~41 |
| 40*CY(M)14-1B | 31.5 | 40 | 40 | 60 | 23.3 | 35 | 223 | 28.4~41 |
| 63*CY(M)14-1B | 31.5 | 63 | 63 | 94.5 | 36.8 | 55 | 352 | 56~74 |
| 80*CY(M)14-1B | 31.5 | 80 | 80 | 120 | 46.7 | 70 | 445 | 56~74 |
| 100*CY(M)14-1B | 31.5 | 100 | 100 | 150 | 58 | 87.5 | 557 | 80~110 |
| 125*CY(M)14-1B | 31.5 | 125 | 125 | 188 | 73 | 109 | 696 | 80~110 |
| 160*CY(M)14-1B | 31.5 | 160 | 160 | 240 | 93 | 140 | 891 | 138~168 |
| 250CY(M)14-1B | 31.5 | 250 | 250 | 375 | 146 | 218 | 1392 | 200~232 |
| 400CY(M)14-1B | 31.5 | 400 | 400 |
| 233 |
| 2228 | 200~232 |
Specifications:
Warranty | 1 Year |
Specification | CY14-1B |
Place of Origin | China |
Type | Axial piston pump |
Color | Available any color |
HS Code | 8412299090 |
Application | machine tools, forging, metallurgical engineering, mining |
Pressure | 315 bar |
Delivery Time | 15-30 Days after Payment |
Displacement | 1.25-160 cm3 |
Applications:
1. In industrial hydraulic press systems, the CY14-1B axial piston
pump delivers continuous and stable high-pressure hydraulic power
to stamping, forging, and metal forming machines operating under
demanding conditions. With its high volumetric efficiency and
optimized internal flow channel design, it reduces energy losses,
minimizes pressure pulsation, and ensures smooth machine operation.
The high-strength alloy pump housing and wear-resistant pistons
maintain consistent performance even during extended heavy-duty
cycles. This hydraulic pump is specifically engineered for
large-scale stamping workshops and heavy machinery manufacturing
plants where uninterrupted production cycles, precision control,
and long-term reliability are essential to meet strict production
schedules and maintain cost efficiency.
2. In automotive parts stamping production lines, the CY14-1B axial
piston pump powers multiple hydraulic presses to operate
synchronously, ensuring precision and speed in every stamping
stage. Its low-noise operation enhances the working environment,
while high-temperature-resistant seals and durable bearings
maintain stable performance even during continuous three-shift
manufacturing cycles. This piston pump is designed to handle rapid
load changes without pressure loss, a crucial factor in preventing
defects and ensuring consistent product quality. By delivering
reliable, energy-efficient hydraulic power, it supports automotive
manufacturers in reducing downtime, improving throughput, and
meeting the high demands of modern mass-production facilities.
3. In large excavator hydraulic systems, the CY14-1B axial piston
pump acts as the primary source of hydraulic power for the boom,
arm, bucket, and swing mechanisms. Its excellent self-priming
capability ensures smooth oil supply even at low engine speeds,
while the optimized swash plate design minimizes mechanical shock
and system vibration. This combination of performance and
durability is critical in mining, construction, and earthmoving
operations, where equipment operates under heavy loads, fluctuating
pressures, and extreme environmental conditions. By providing
stable, high-pressure output, this hydraulic pump extends the
service life of the entire hydraulic system and reduces overall
operating costs for heavy equipment operators.
Competitive Advantage:
1. The CY14-1B axial piston pump is constructed from high-strength
steel and precision-engineered components, ensuring long-term
stability under high-pressure and heavy-load operating conditions.
This piston pump significantly reduces equipment failure rates and
maintenance costs, enhancing the overall reliability of hydraulic
systems. It is suitable for a wide range of applications including
metallurgy, injection molding, and construction machinery. By
providing efficient and stable hydraulic power, this pump ensures
consistent performance, supports energy-efficient operation, and
improves the productivity and safety of industrial equipment,
making it an essential choice for high-demand hydraulic
applications.
2. The CY14-1B hydraulic pump features optimized flow channels and
a low-pulsation design that ensures smooth hydraulic output,
minimizes system vibrations, and extends the service life of
hydraulic components. This axial piston pump also enhances energy
efficiency, supporting sustainable and cost-effective operation. It
meets the stringent demands of modern industrial hydraulic systems
requiring high performance and precision. By providing stable,
responsive, and energy-efficient hydraulic power, this piston pump
is ideal for applications in high-precision hydraulic control
environments, contributing to improved productivity, reduced
operational costs, and extended equipment longevity.
3. The CY14-1B piston pump is equipped with wear-resistant,
high-hardness pistons and precision seals, maintaining high
volumetric efficiency and minimal leakage even under
high-temperature, particulate-laden, and continuous-load
conditions. This hydraulic pump significantly enhances system
reliability and extends equipment life. It is especially suitable
for demanding hydraulic applications such as metallurgical
processing, tunnel construction, and port crane operations. By
delivering consistent, high-performance hydraulic power, this axial
piston pump ensures precise control, reduces maintenance frequency,
and supports the continuous operation of critical industrial
machinery, making it a reliable choice for challenging operational
environments.
The Analysis For CY Series Piston Pump Common Breakdown:
1. The CY14-1B axial piston pump may experience accelerated piston
wear during continuous high-pressure operation, resulting in
reduced flow output. This issue is typically caused by insufficient
lubrication or contaminated hydraulic oil. Worn pistons decrease
the volumetric efficiency of the pump, affecting the stability of
hydraulic system pressure and potentially compromising the
operational accuracy of automated machinery or construction
equipment. To mitigate this, it is essential to monitor hydraulic
fluid cleanliness, ensure proper lubrication, and replace worn
components promptly. This hydraulic pump fault, if unaddressed, can
lead to decreased production efficiency, increased maintenance
costs, and possible system downtime in industrial applications
where precision and reliability are critical.
2. When the CY14-1B piston pump operates in prolonged
high-temperature environments, seal aging and leakage can occur.
Heat-induced expansion or hardening of seals causes hydraulic oil
leakage, pressure drops, and reduced system efficiency. This
increases energy consumption and the risk of equipment failure.
Such issues are particularly common in high-temperature
applications like metallurgy or chemical processing. To prevent
these problems, regular inspection of seals and the use of
high-temperature-resistant sealing materials are essential. This
axial piston pump fault, if ignored, can compromise industrial
production reliability, increase maintenance costs, and reduce the
overall performance and longevity of the hydraulic system.
3. The CY14-1B axial piston pump may exhibit delayed response or
flow fluctuations under frequently changing load conditions. This
is primarily caused by excessive internal piston clearances or
improperly adjusted hydraulic control valves. Such fluctuations
lead to unstable dynamic control of the hydraulic system, affecting
the operational precision of automated production lines and
precision machinery. To address this, valve parameters should be
adjusted, and internal pump clearances should be inspected to
ensure they meet specifications. This hydraulic pump issue, if left
unresolved, can degrade system stability, reduce operational
efficiency, and increase the risk of equipment wear or downtime in
industrial environments requiring consistent hydraulic performance.
